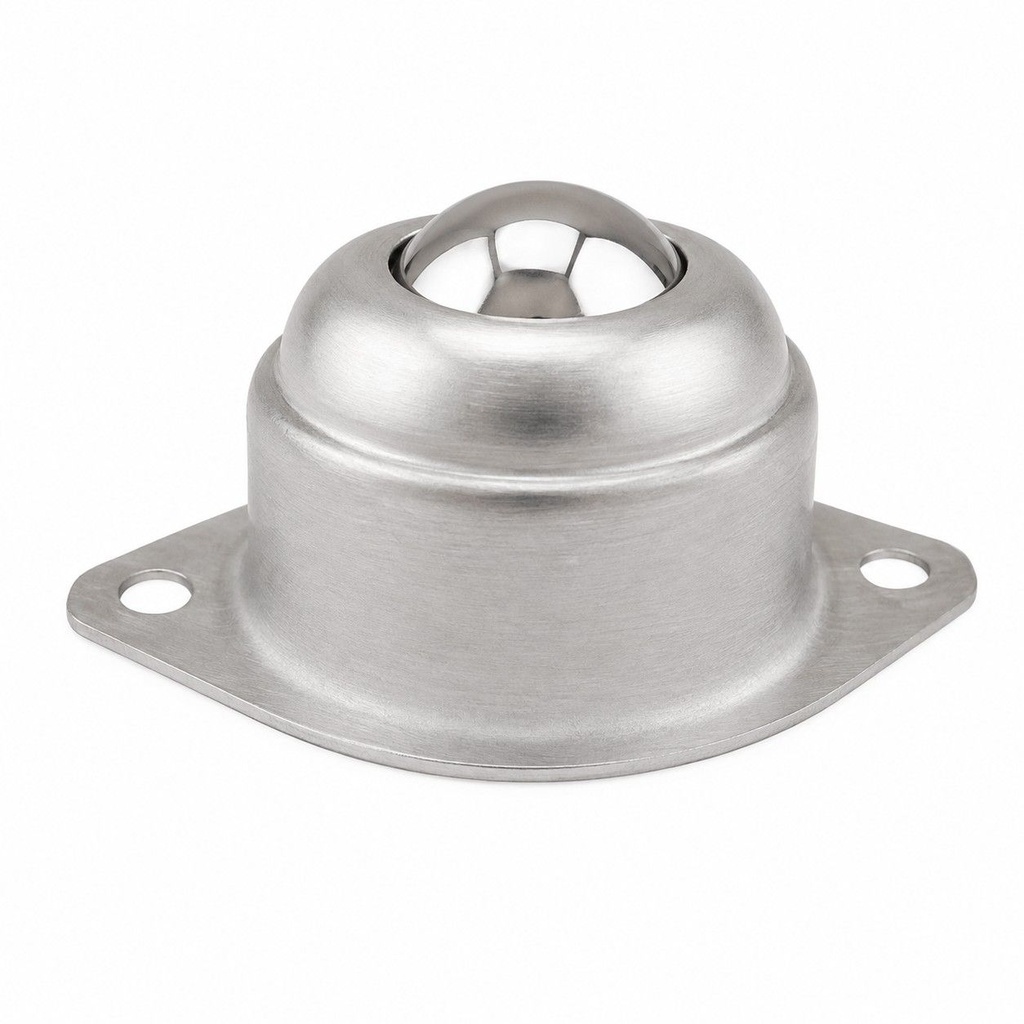

CY-30A
The CY-30A Ball Transfer Unit is a heavy-duty material-handling component designed for smooth movement of loads in multiple directions. It offers a 65 kg unit load capacity and an allowable load of up to 80 kg, making it suitable for demanding industrial transfer and positioning applications.
Category :
Ball Transfer Units
100% original guarantee
Return within 30days
Free delivery on all orders
- Heavy-duty ball transfer unit for multidirectional load movement
- 65 kg unit load capacity
- 80 kg allowable load
- Approximate body weight of 240 g
- Ø30 mm main ball
- Strong metal housing for industrial applications
- Two-hole flange mounting for secure installation
- Smooth rolling action for easier load positioning
- Heavy-duty conveyor tables
- Material handling systems
- Assembly and production lines
- Warehouse transfer stations
- Packaging machinery
- Sheet metal and panel handling
- Loading and unloading platforms
No product details available

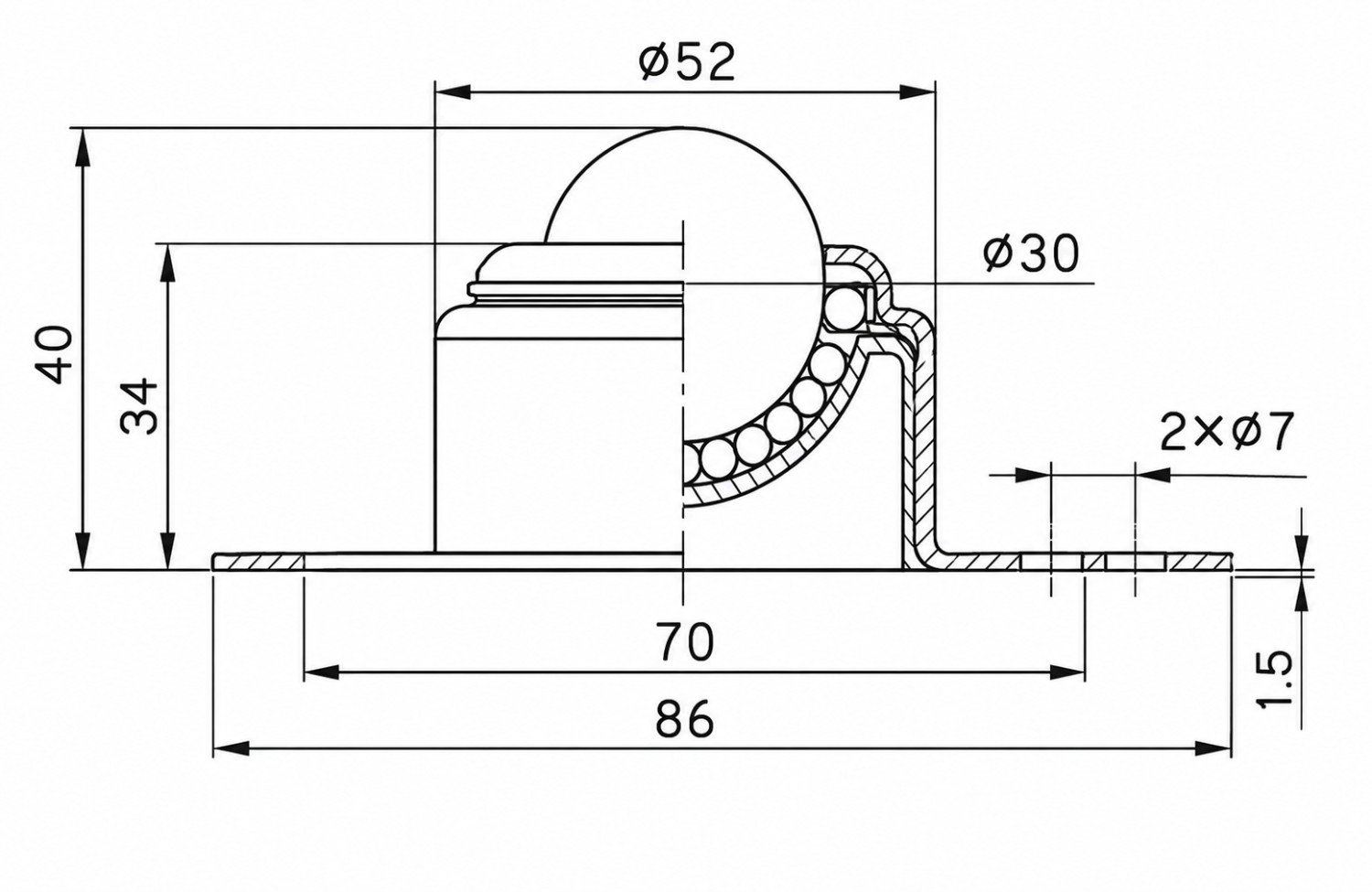

Engineering Drawing
| Internal Reference | Allowable Load | Item No. | Unit Load | Body Weight |
|---|---|---|---|---|
| CY-30A Type | 80 kg | 1004 | 65 kg | 240 g |
