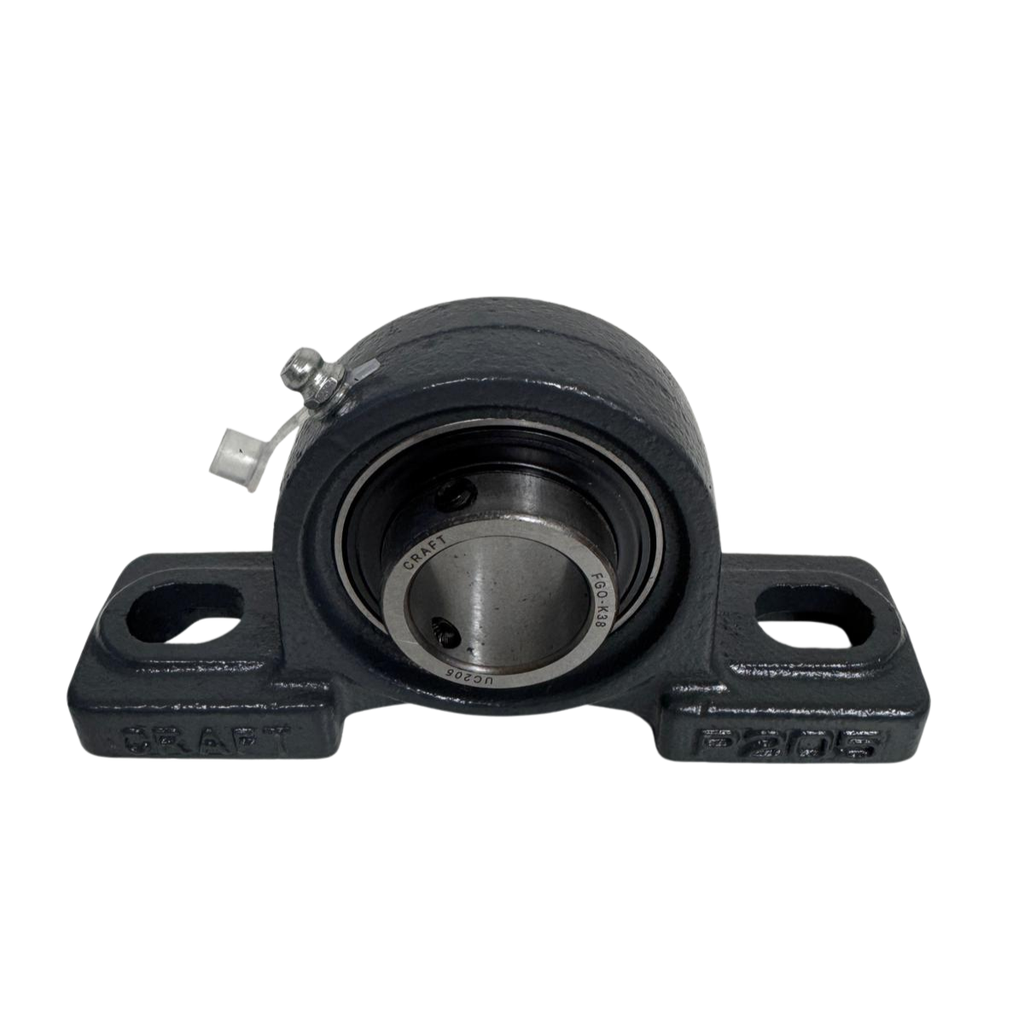

UCP Pillow Block Bearing Units

https://techtrade24.com/web/image/product.template/1073/image_1920?unique=97e9e44

The UCP Pillow Block Bearing Unit Series features a UC ball bearing insert, P-Type pillow block housing, set screw locking, and grease lubrication. Available in 12–140 mm bore sizes, these industrial-mounted bearings provide reliable shaft support for conveyors, agricultural machinery, packaging equipment, and material handling systems.

Technical Information

Product Type: Pillow Block Bearing Unit

Bearing Insert: UC Series

Housing Type: P-Type Pillow Block Housing

Shaft Locking: Set Screw

Lubrication: Grease Lubricated

SKU :
UCP201
Category :
Housing Units
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders

Category: Housing Units

Login to see price

  • Model

This combination does not exist.

Request Quote

Fully customizable — tell us your required quantity, specifications, or delivery timeline and our team will prepare a tailored quote for you.

Request Quote
Specifications
Model UCP201 or UCP202 or UCP203 or UCP204 or UCP205 or UCP206 or UCP207 or UCP208 or UCP209 or UCP210

Key Features

  • Easy Installation
  • Multiple Sizes Available
  • Maintenance-Friendly
  • Standard & Custom Solutions

Applications

  • Conveyor Systems
  • Industrial Machinery
  • Material Handling Equipment
  • Agricultural Machinery
  • Packaging & Processing Equipment
  • Manufacturing & Automation

Need Assistance?

Looking for a standard or customised solution?

Our specialists can source the right product to meet your technical and commercial requirements. Request a fast and competitive quotation today.

Manufacturer Information

A company sources goods, for example, from an Asian producer and applies its name or its own brand to the goods. Thus, the company acts as a manufacturer within the meaning of the Product Safety Act (ProdSG), even though it did not produce the goods itself.

Quasi-Manufacturer Kugellager-Express GmbH Grenzweg 14 A 33758 Schloß Holte-Stukenbrock Germany info@kugellager-express.de

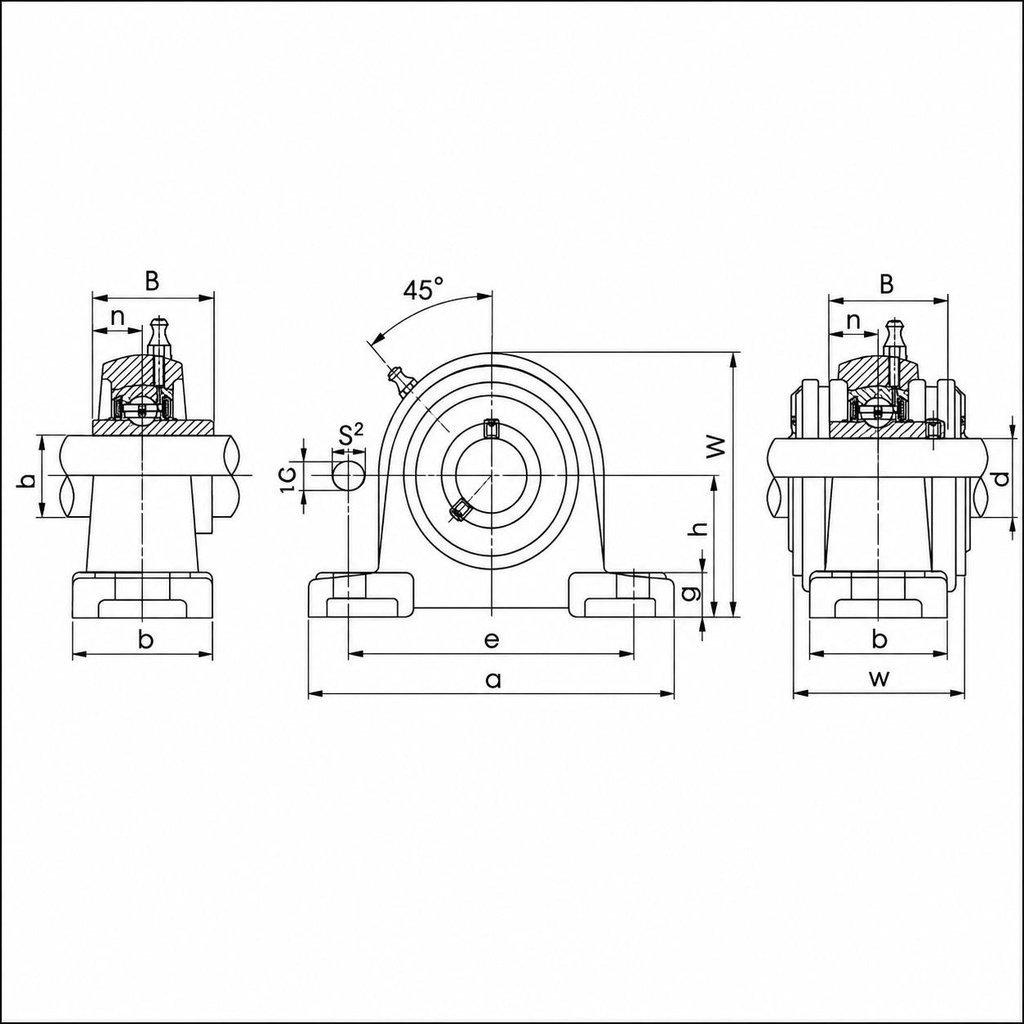

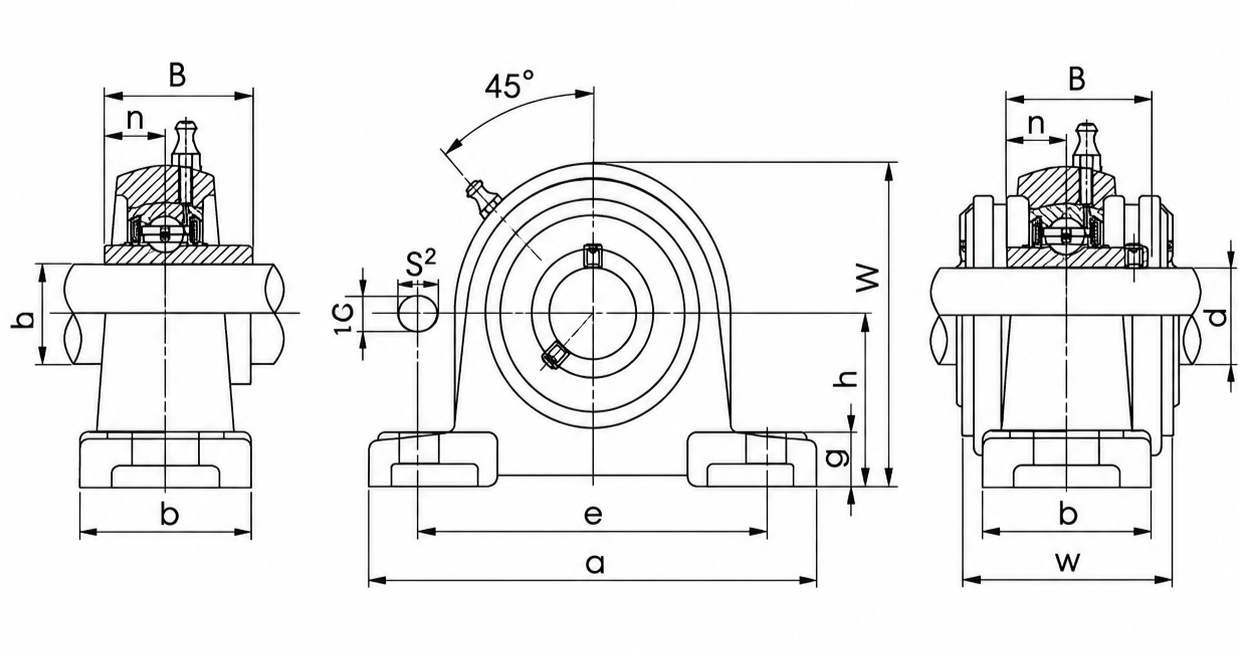

Engineering Drawing

Model/Reference d (in) h a e b s1 s2 g w B n Bolt Size Bearing No. Housing No. Weight (kg)
UCP201 12 30.2 127 95 38 13 19 14 62 31 12.7 M10 UC201 P201 0.69
UCP202 15 30.2 127 95 38 13 19 14 62 31 12.7 M10 UC202 P202 0.69
UCP203 17 30.2 127 95 38 13 19 14 62 31 12.7 M10 UC203 P203 0.68
UCP204 20 33.3 127 95 38 13 19 14 65 31 12.7 M10 UC204 P204 0.66
UCP205 25 36.5 140 105 38 13 19 15 71 34.1 14.3 M10 UC205 P205 0.81
UCP206 30 42.9 165 121 48 17 20 17 84 38.1 15.9 M14 UC206 P206 1.24
UCP207 35 47.6 167 127 48 17 20 18 93 42.9 17.5 M14 UC207 P207 1.58
UCP208 40 49.2 184 137 54 17 20 18 100 49.2 19 M14 UC208 P208 1.89
UCP209 45 54 190 146 54 17 20 20 106 49.2 19 M14 UC209 P209 2.14
UCP210 50 57.2 206 159 60 20 23 21 113 51.6 19 M16 UC210 P210 2.66
